干式變壓器用橫流冷卻風機

渦輪吹風? 低噪音? 大風量

The traditional color still make people happy, and simple tonal collocation, bold stripes can transform bring new look, let you bec

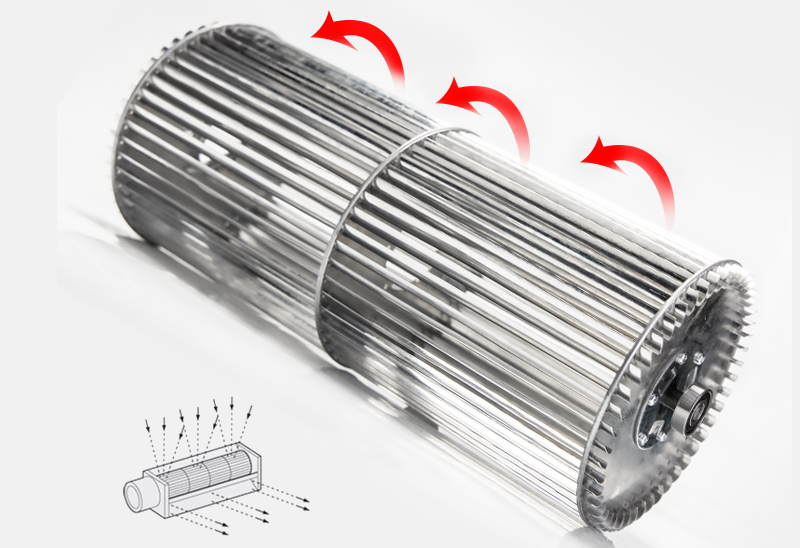

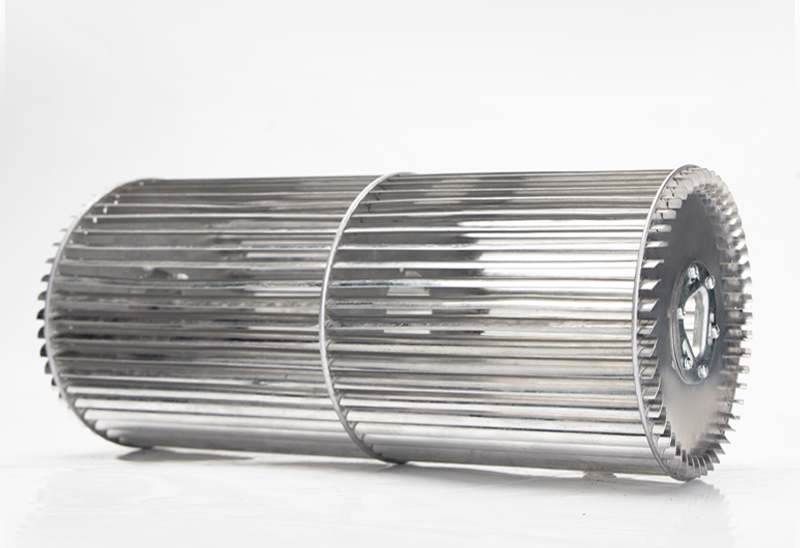

鋁合金多翼扇葉

經過嚴格動平衡校準，重量輕低噪音，振動小，風量大，不易腐蝕

After strict dynamic balance calibration, light weight, low noise, low vibration, large air volume, not easy to corrode

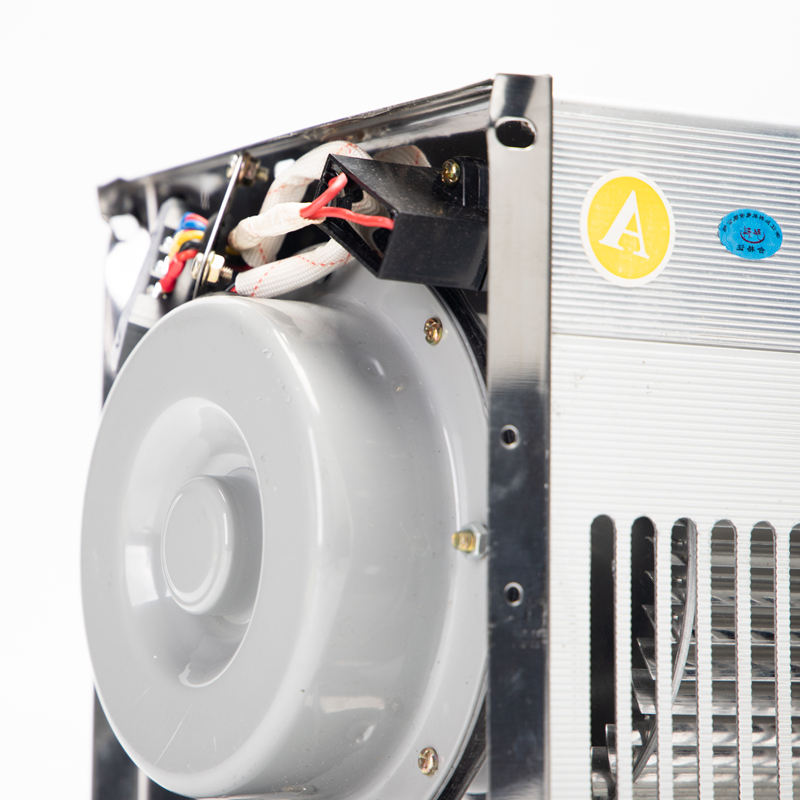

純銅電機

銅芯線圈，雙滾珠軸承，轉速快，發熱少，振動小，噪音低，使用壽命長

Copper core coil, double ball bearing, fast speed, less heat, low vibration, low noise, long service life

渦輪風扇出風

渦輪設計猶如飛機的引擎，風速均勻，出風更大更強

Suitable for printing machine, agricultural cultivation, plastic machinery, plastic blowing, oven

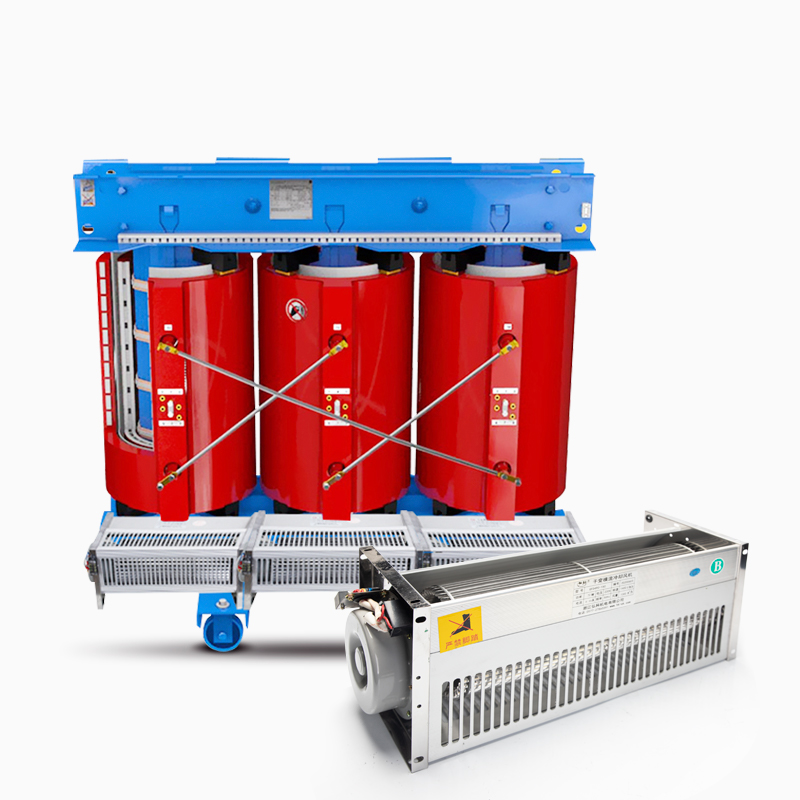

干式變壓器專用

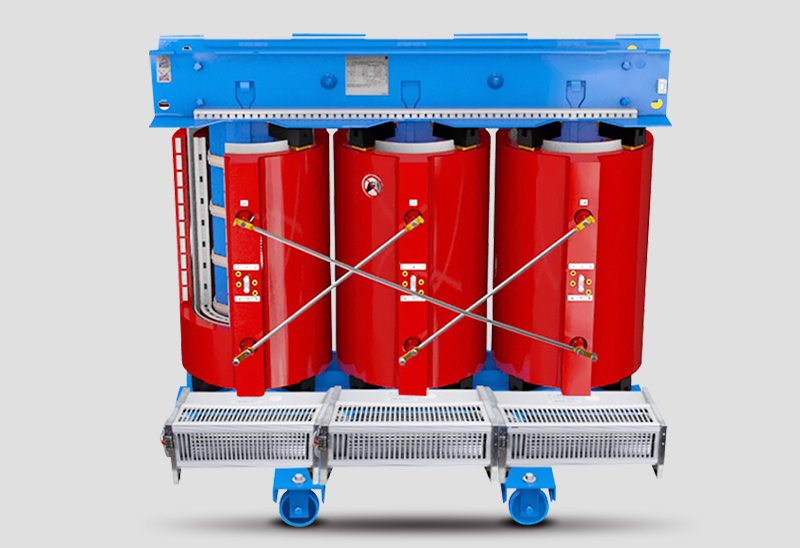

主用于干式變壓器冷卻增容，及電子設備、配電柜、高低壓開關柜等強迫送風冷卻

Mainly used for cooling and capacity expansion of dry-type transformers, and forced air cooling of electronic equipment, power distribution

cabinets,high and low voltage switch cabinets, etc.

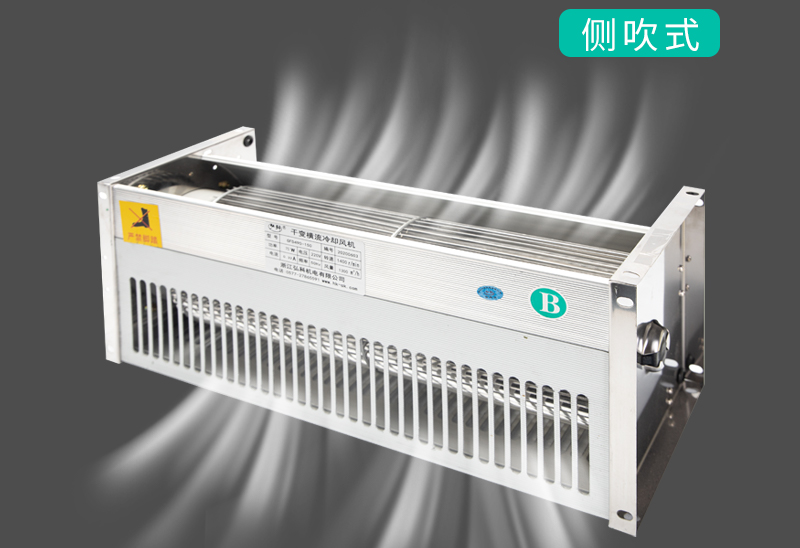

雙面進風?側吹式

實用新型專利雙面進風風道，進風對流更快

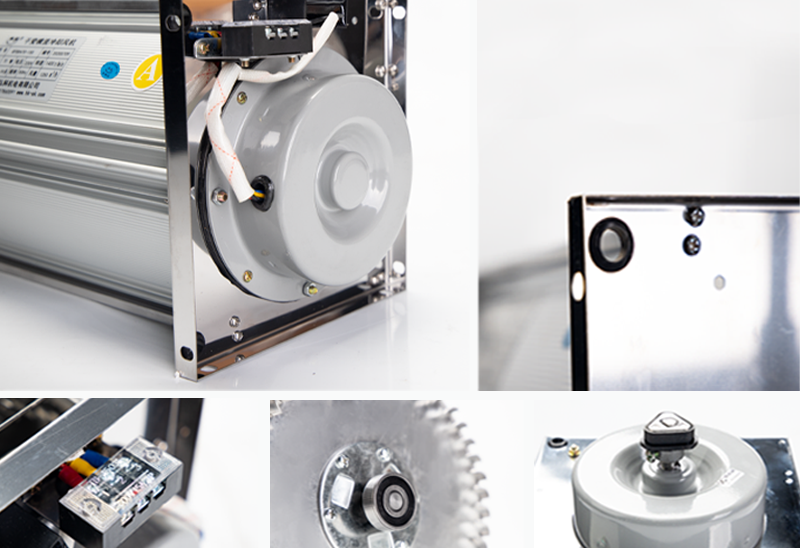

產品細節

純銅高轉速電機? 轉速高達2800次/分

Pure copper high-speed motor, speed up to 2800 times/min

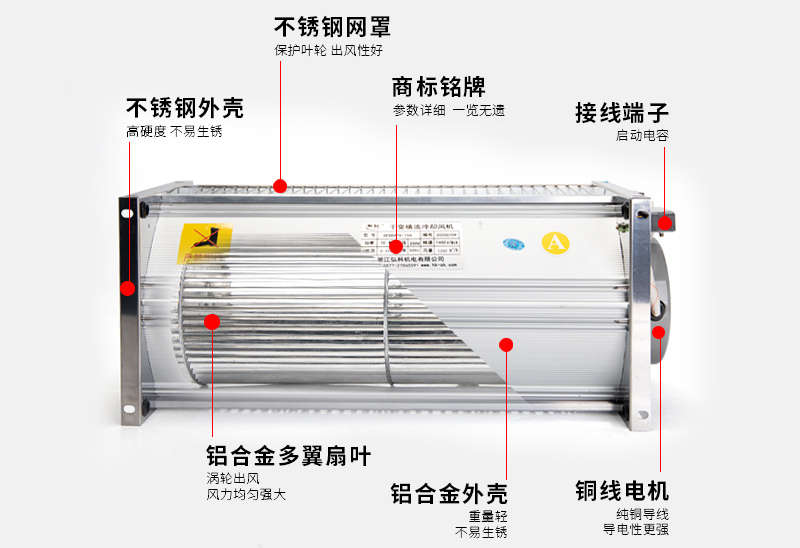

內部解析

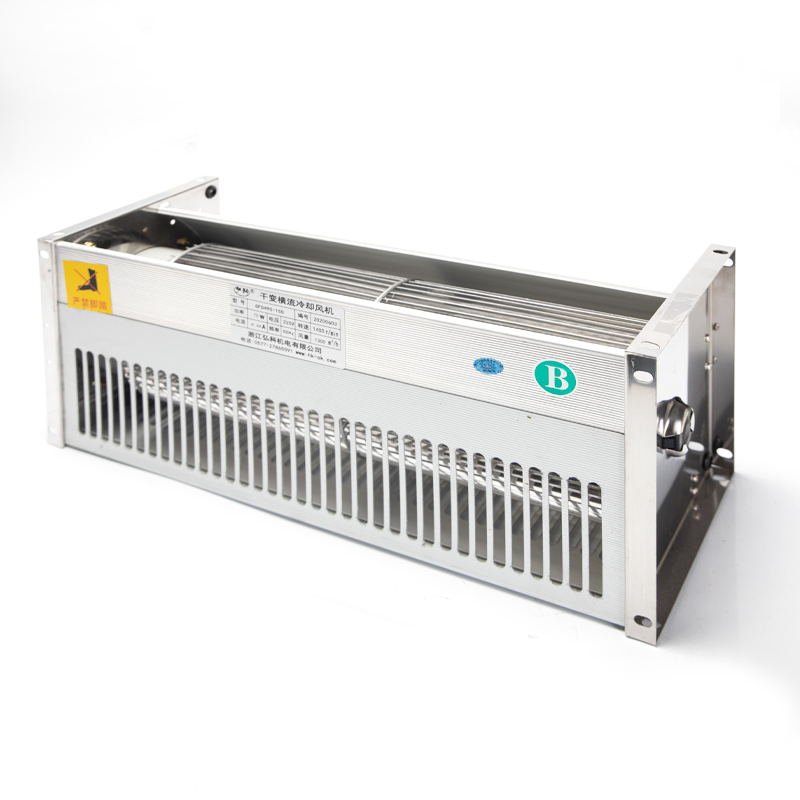

干式變壓器專用橫流冷卻風機整體由不銹鋼和鋁合金組成，十分輕巧

The cross-flow cooling fan for dry-type transformers is entirely composed of stainless steel and aluminum alloy, which is very lightweight

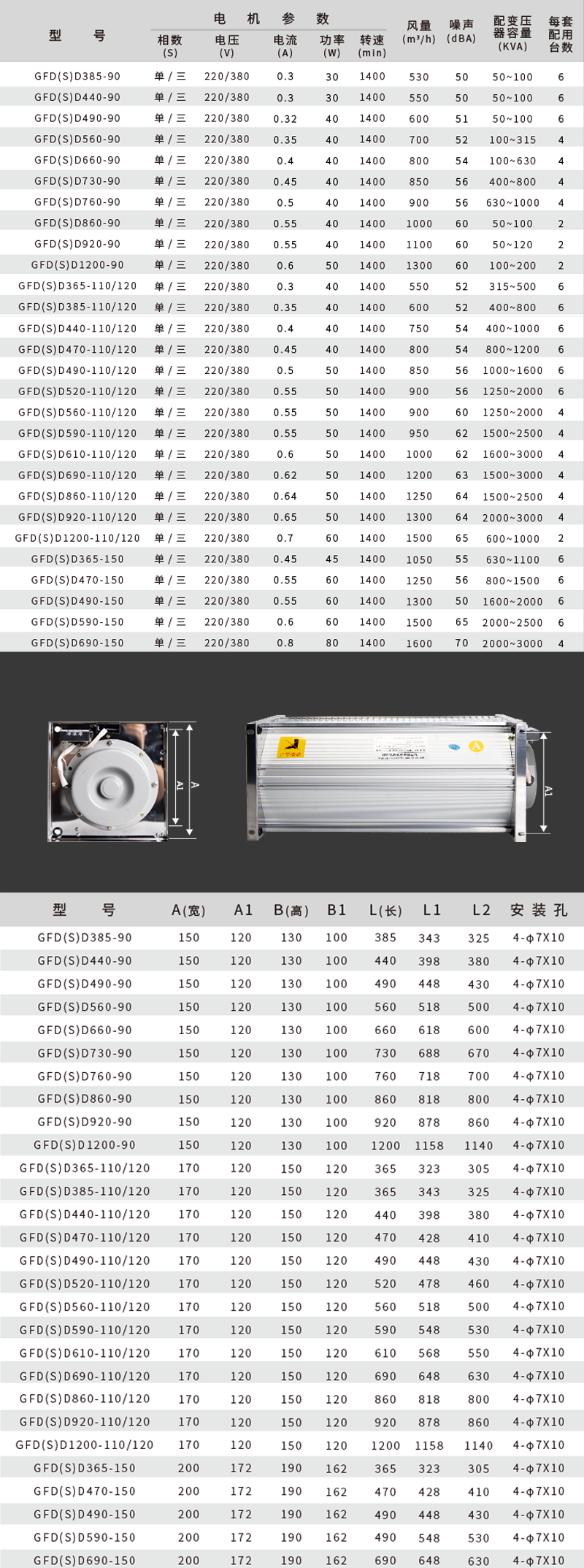

技術安裝參數

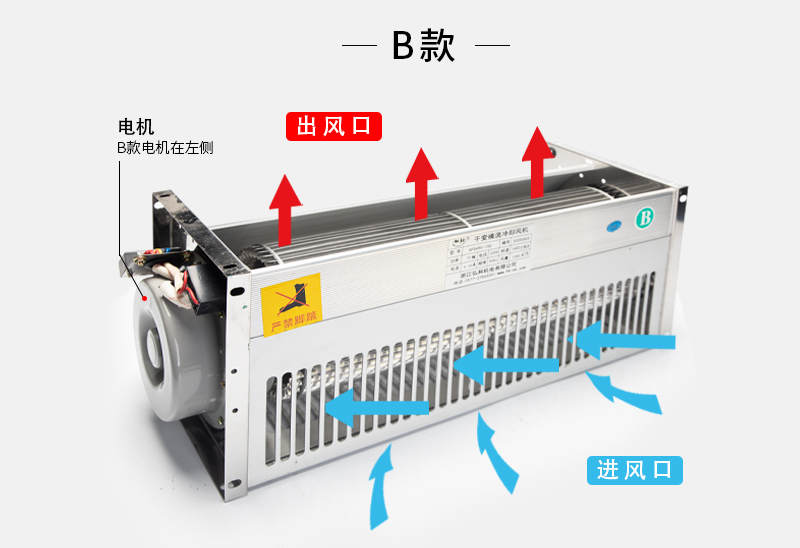

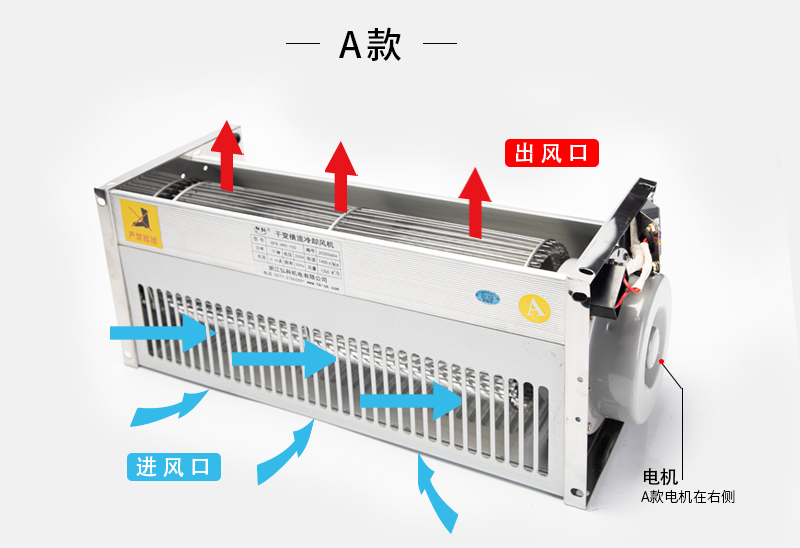

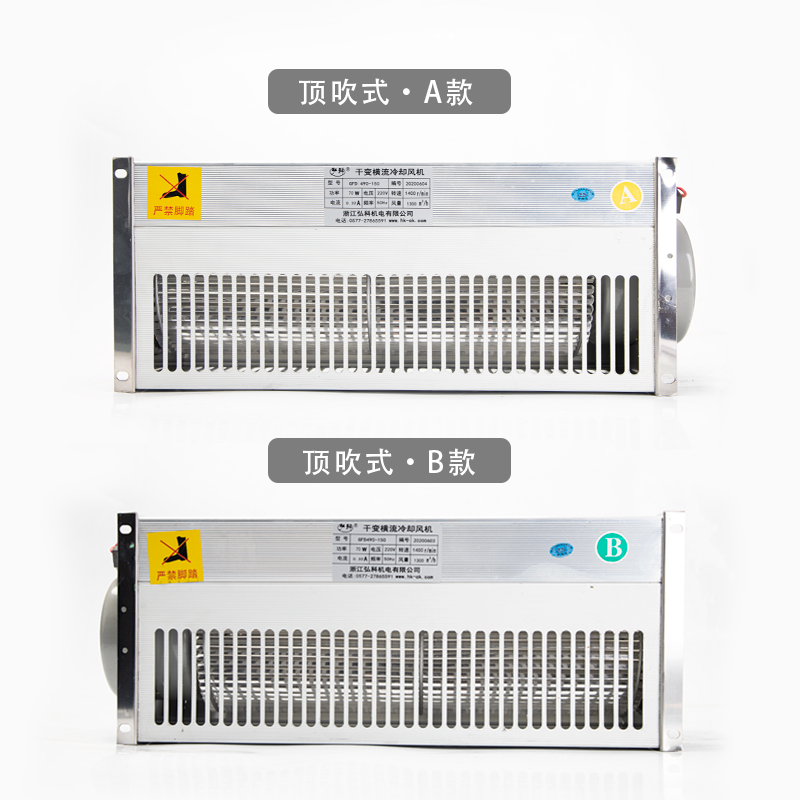

頂吹式為GFD(S)? 側吹式為GFD(S)D? 電機在右為A款 左為B款

The top-blowing type is GFD(S), the side-blowing type is GFD(S)D. The motor is A on the right and B is on the left.

備注：“其他特殊規格可定制，常用為220V，380V另加30元”
